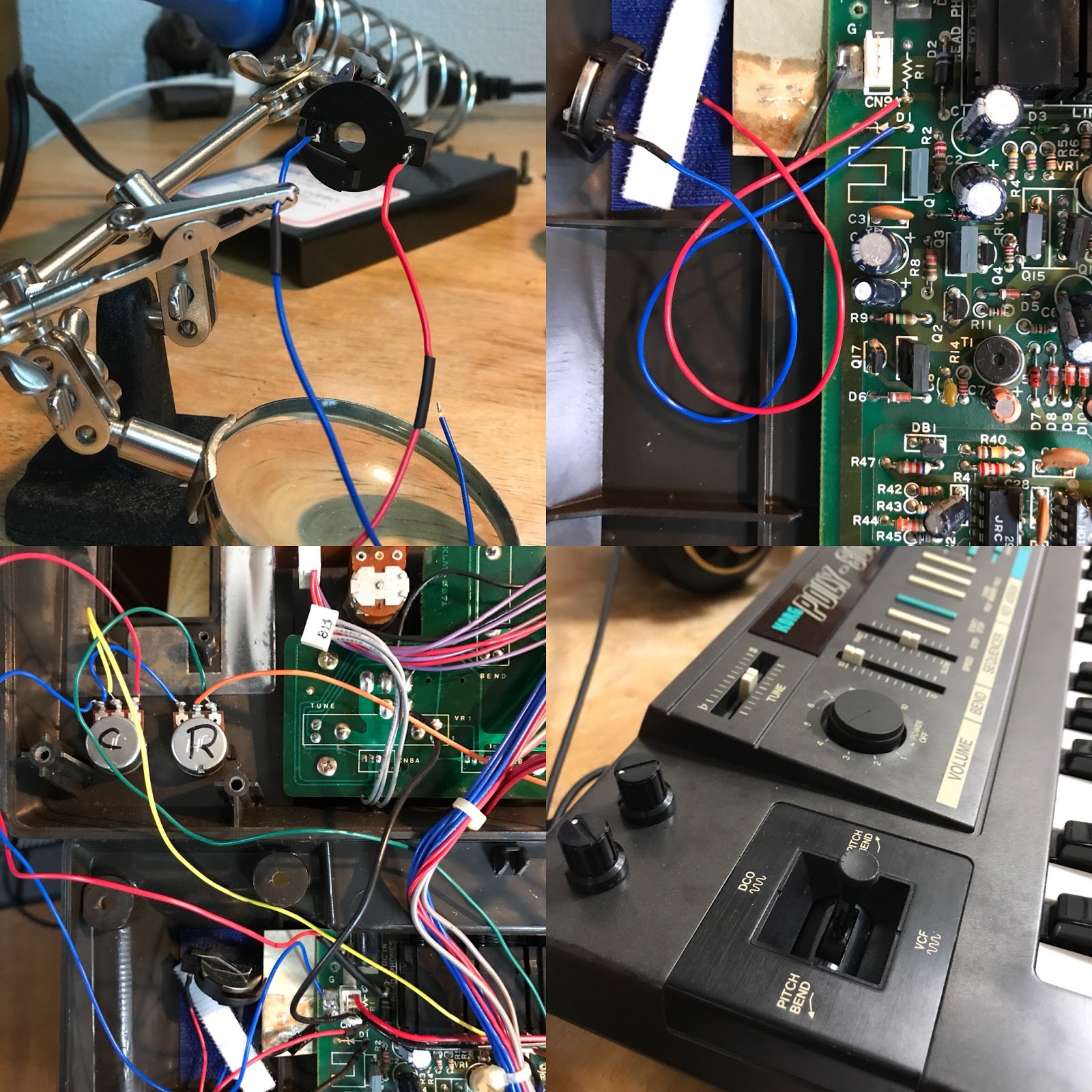

I have not studied the architecture in detail on this one.some day. General Info Links: Vintage Synth ExplorerĨ DCO's with one Korg Filter.so a mix of polyphonic and paraphonic. It's basically just a panel break out for trim pots to give wide control of filter settings. Modifications: 'moogslayer' mod Hey.I didn't make up the name :-).
Uncommon chips/modules used: Korg 2069BDB VCF (NJM2069BD), MN3209/MN3101/NE570 (replaced by Digital delay on Mk II) Parts Sources: Keys knobs semiconductors misc Scematics/Service Manual: fdiskc archive or Patchell's page Patches or knob settings: rlsnuffy mkII sounds or Factory.wav
Operating System code: Sepulveda's ex800 page
